Publication 2711-IN032C-EN-P

2 Remote RS-232 Port Assembly

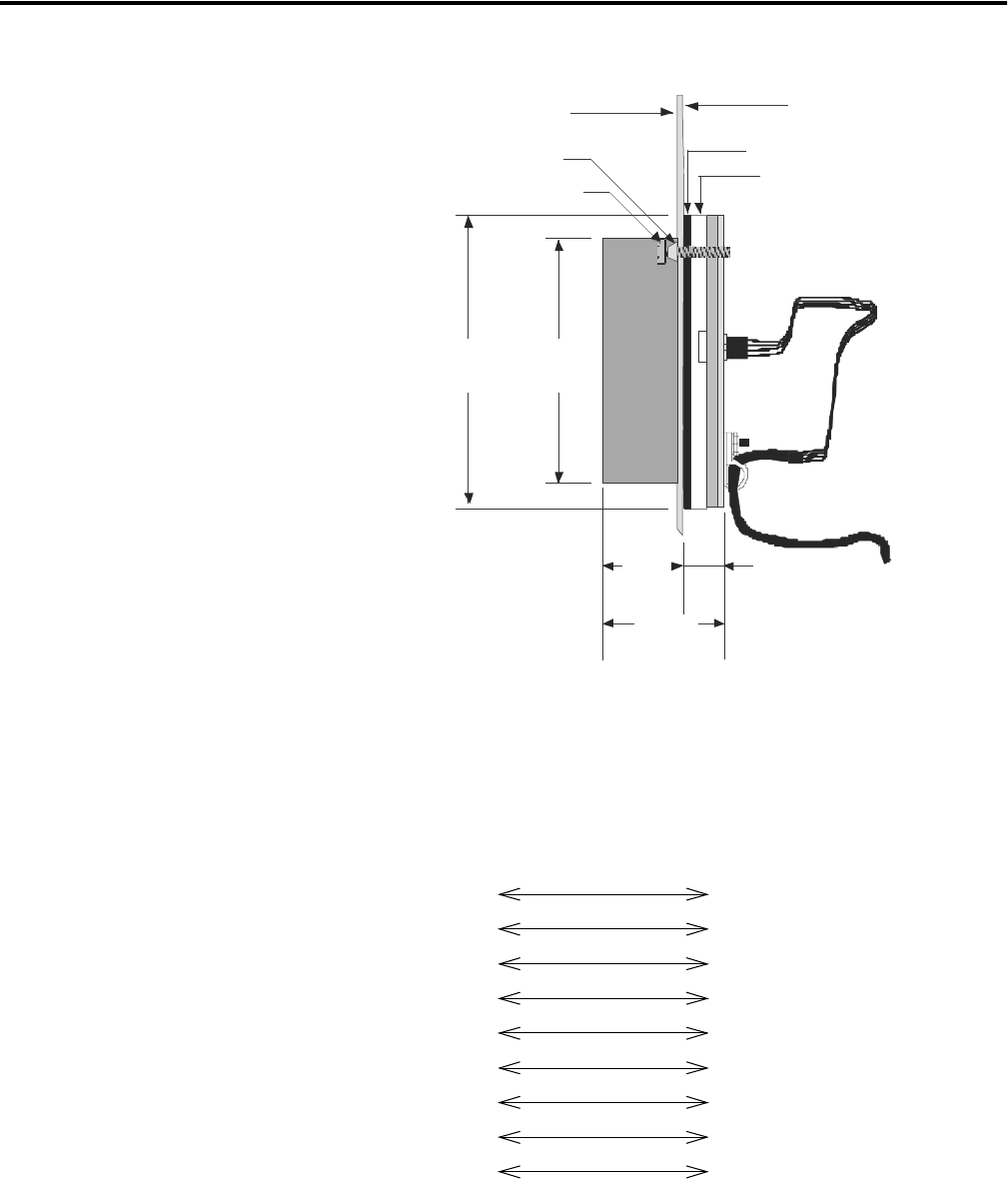

Mounting Dimensions

Cable Pinouts

The Remote RS-232 port has the following connections:

Outside face

of panel

Washer

Screw

Panel

Gasket

Housing

82.6 mm

(3.25 in.)

76.2 mm

(3.0 in.)

13.3 mm

(0.525 in.)

34.3 mm

(1.35 in.)

13.3 mm

(0.525 in.)

3 m (10 ft) Cable

Female 9-Pin D Shell

(To PV Terminal)

Male 9-Pin D Shell

(Remote Port)

1

DCD 1 DCD

2 TXD 2 TXD

3 RXD 3 RXD

4 DSR 4 DSR

5 Common 5 Common

6 DTR 6 DTR

7 CTS 7 CTS

8 RTS 8 RTS

9 N/C 9 N/C
